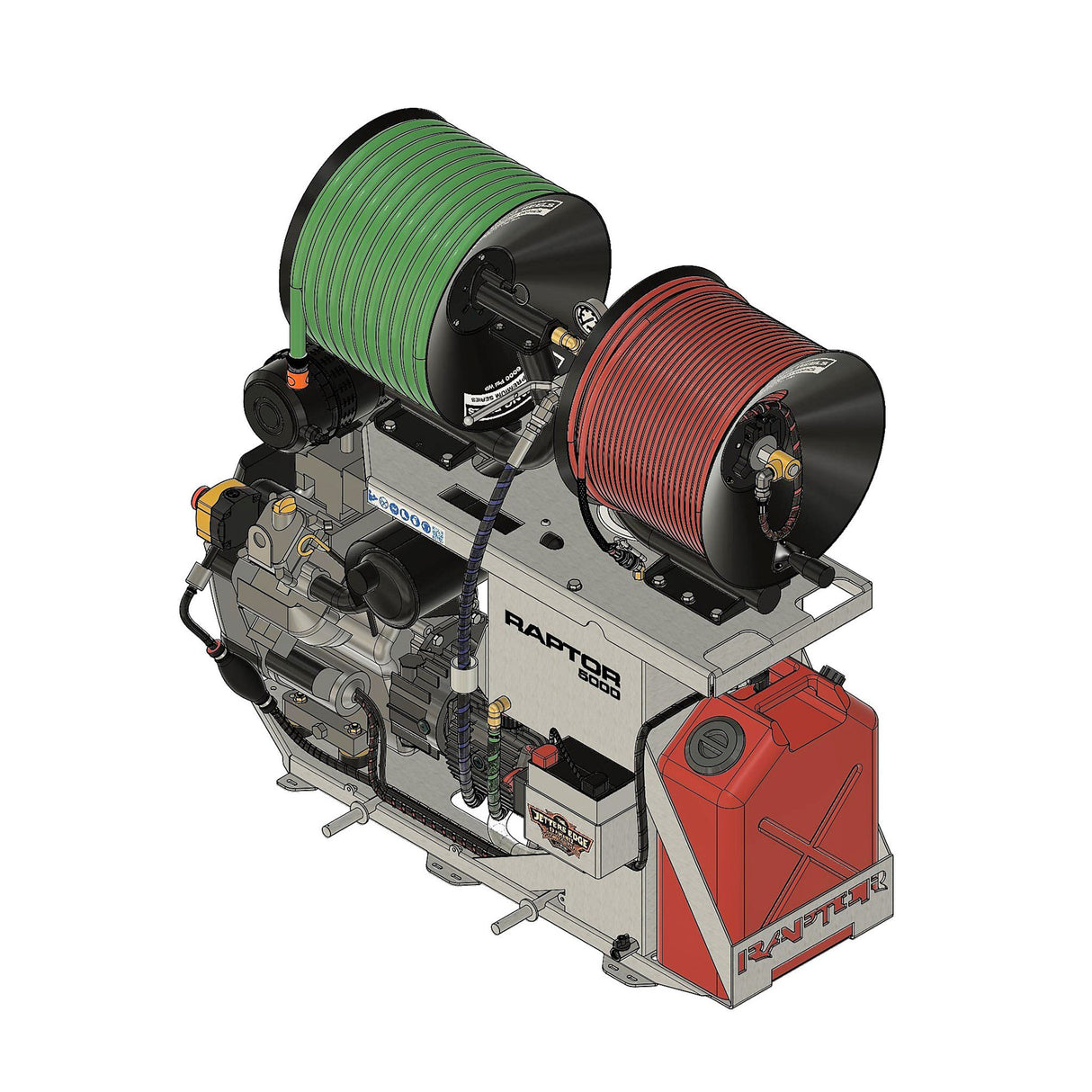

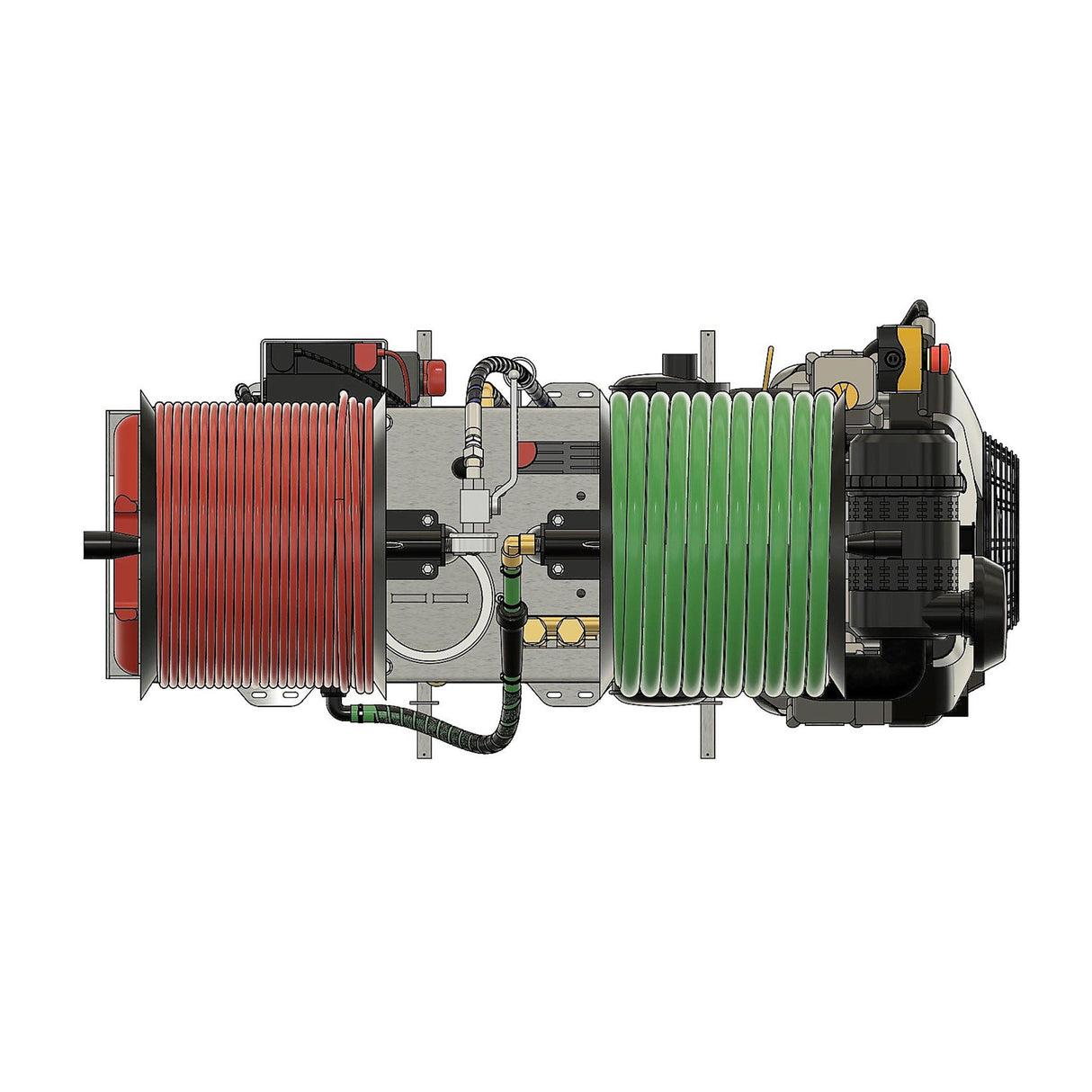

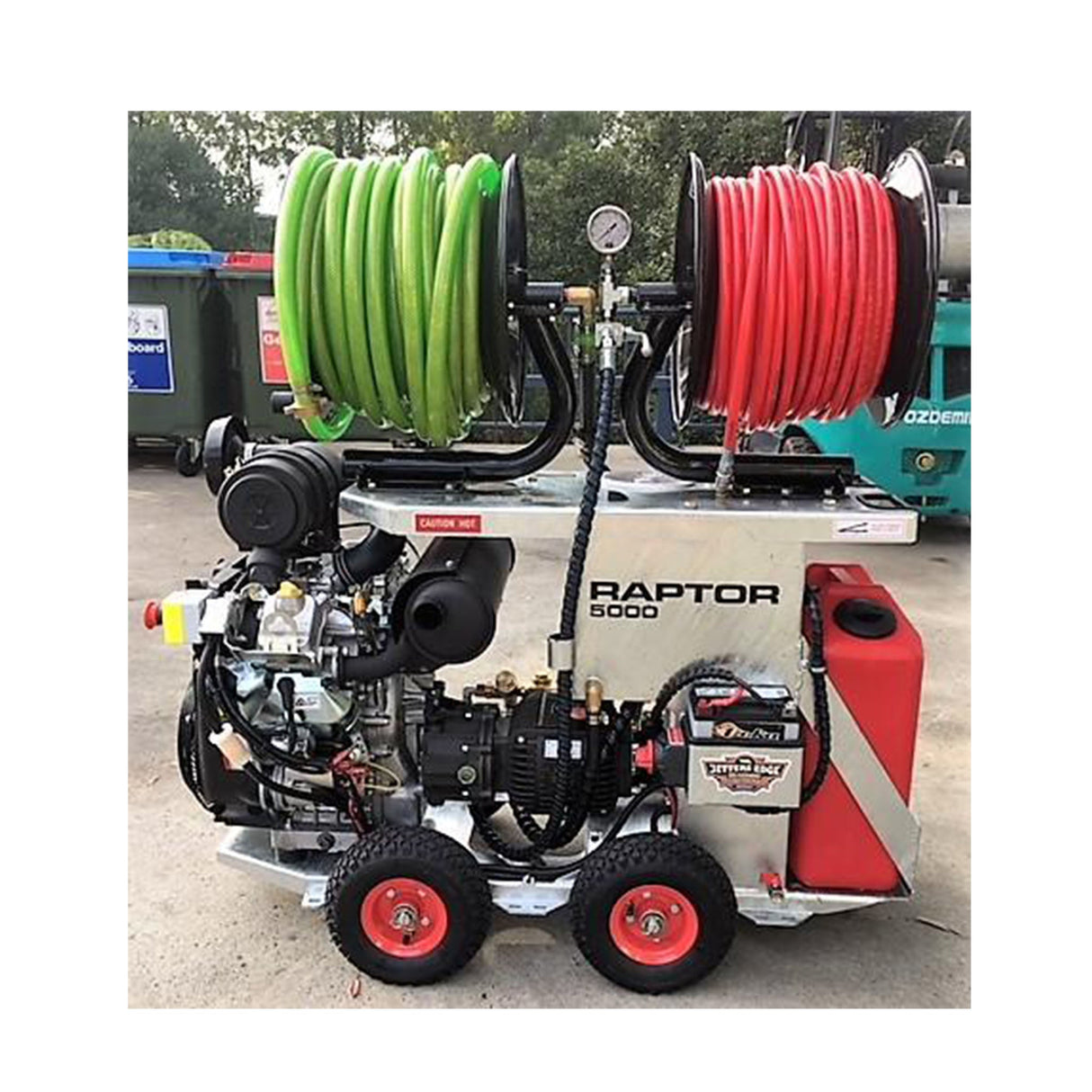

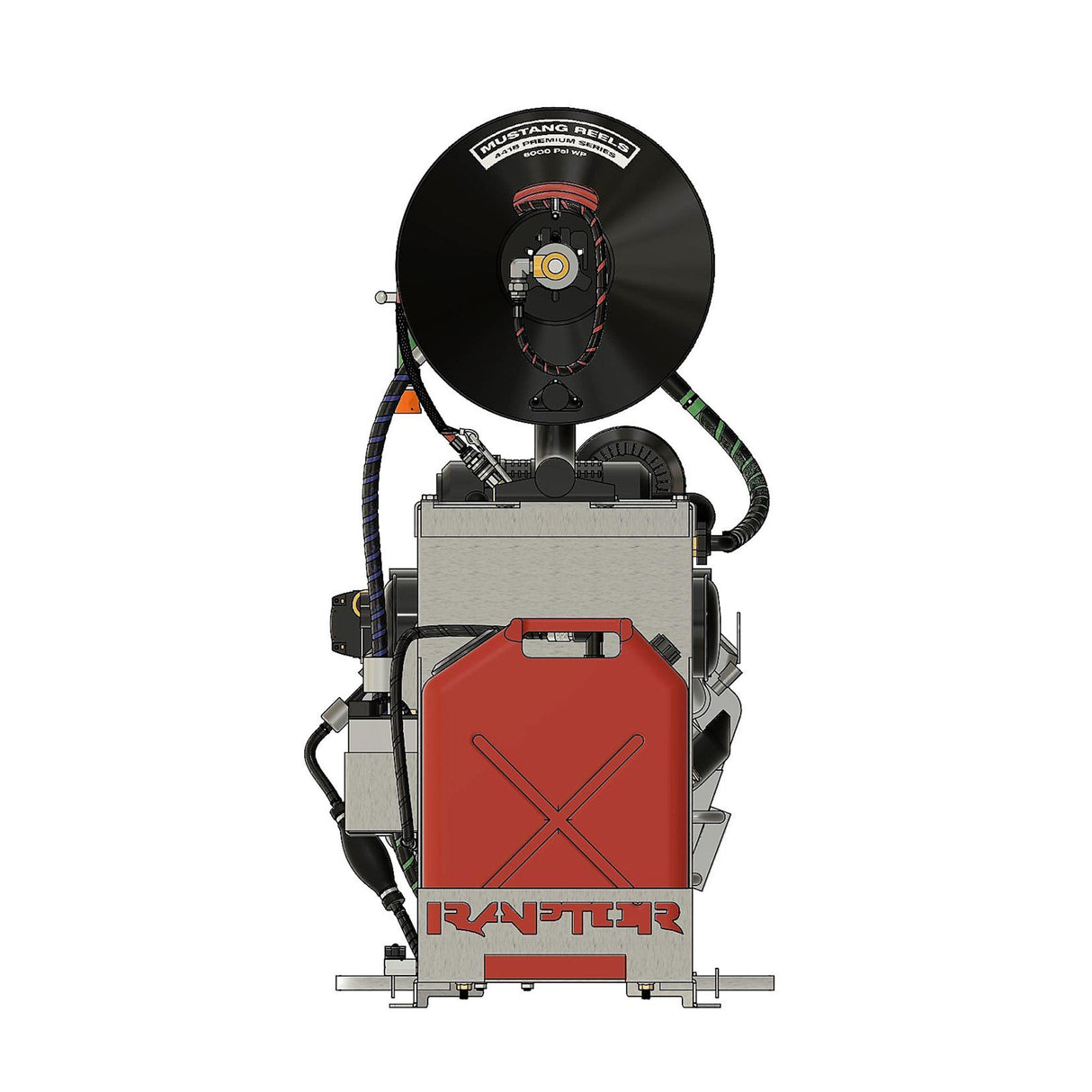

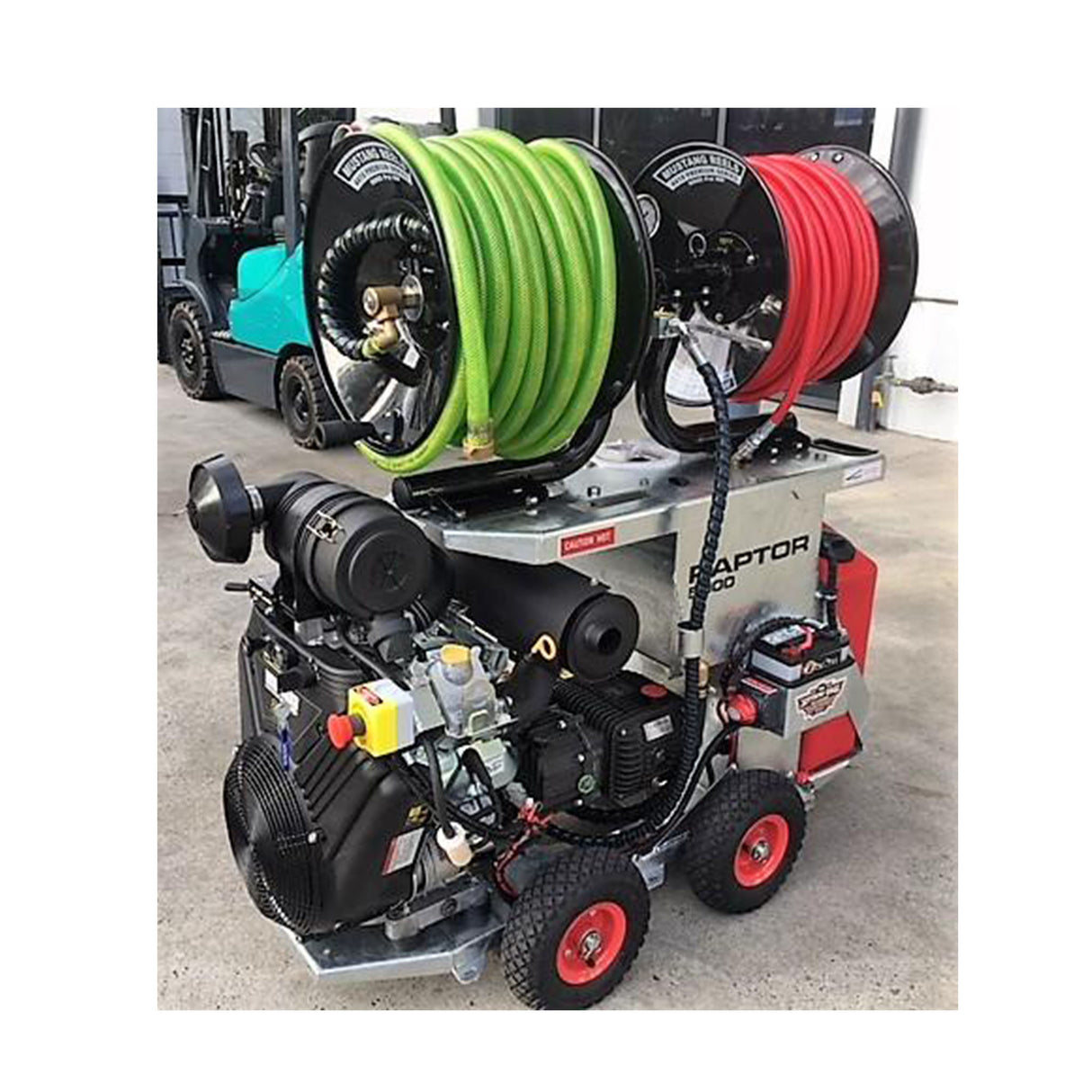

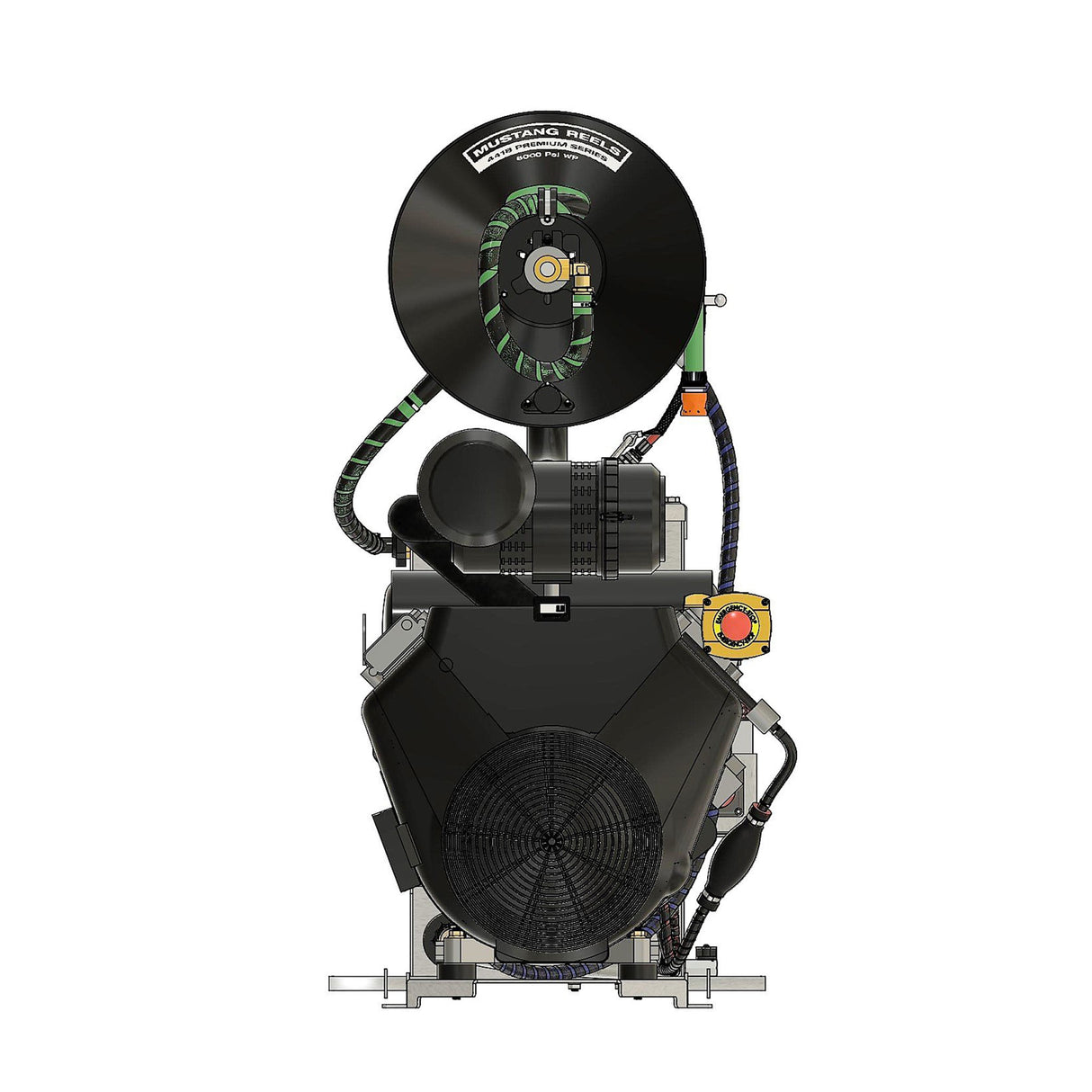

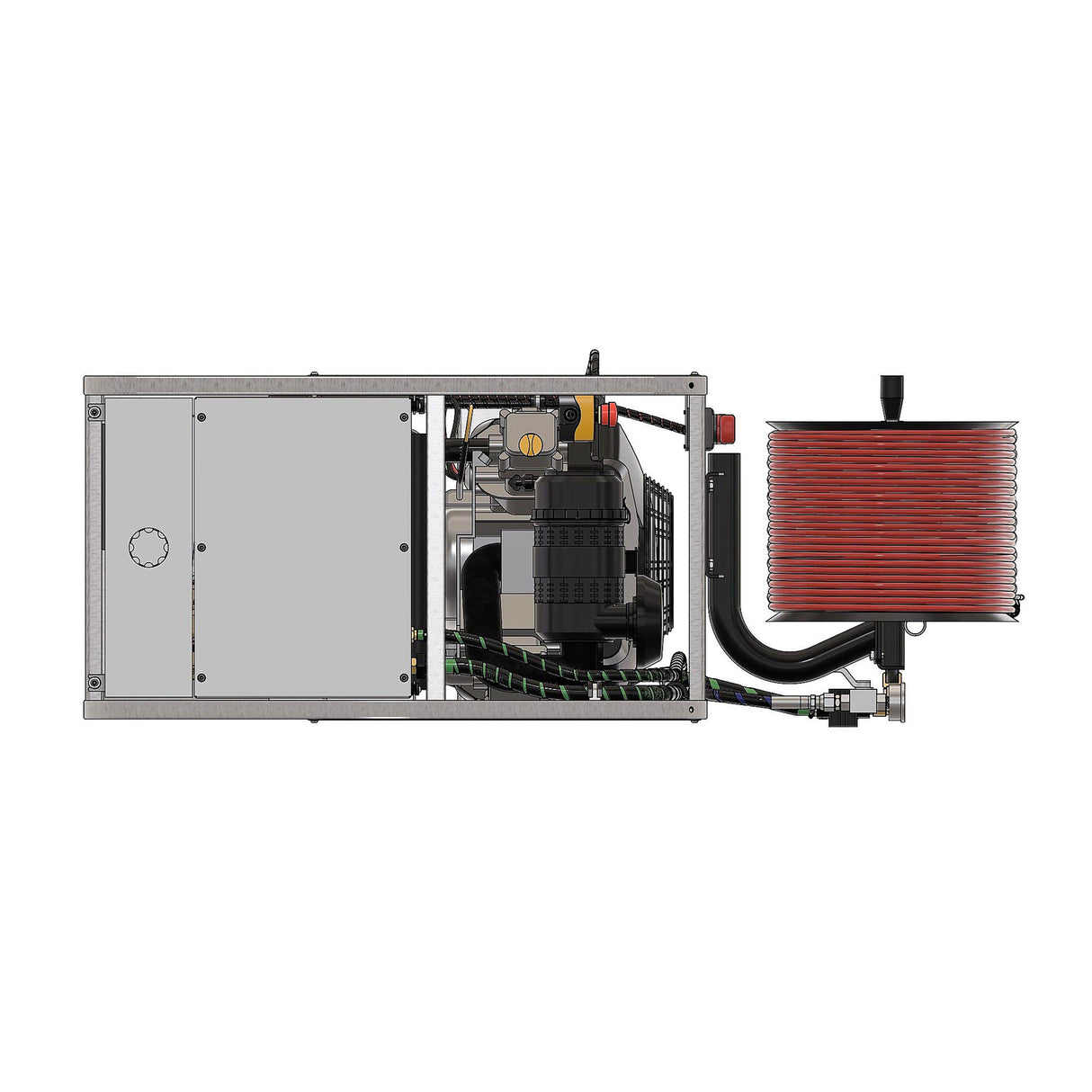

Raptor Honda iGX800

The RAPTOR is a specially designed "All-in-one" unit for those occasions when floor space is in short, but a "Big block" is essential. These units tick every box for the plumber who wants a Jetter with the smallest footprint and maximum power, like 90% of the van installations. It comes with an iGX800 Honda Engine that runs a 5000psi pump with a big 25LPM flow rate to clear the most stubborn drain blockages.

It is a strong, compact, fully self-contained unit that can be left on its wheels or with wheels removed; the chassis can be mounted directly on the deck of your truck or in your van. The Raptor has the reels mounted on top of the jetter giving you more room on the floor of your truck, ute or van.

Features

• Genuine 3 Year Warranty on the engine, 4-year gearbox & pump
• Built-in Galvanised 46L water tank with low water cut-out and a large plastic 20L jerry can for fuel
• Tough Galvanised frame
• Heavy Duty high and low-pressure hose reels with an extra hose capacity
• Sealed AGM long-life battery with an isolator switch to prolong battery life
• Premium quality thermoplastic jetting hose and Mustang fittings

Additional Recommended Extras not included with Raptor
Plumbers Package – (60m Remote Mini Reel with 1/4" Jet Hose, 7 Pc Mustang Nozzle Box, Mustang safety plate, 15m Whip Hose, and Medical Alert Card) for just $3,690.50 including GST.

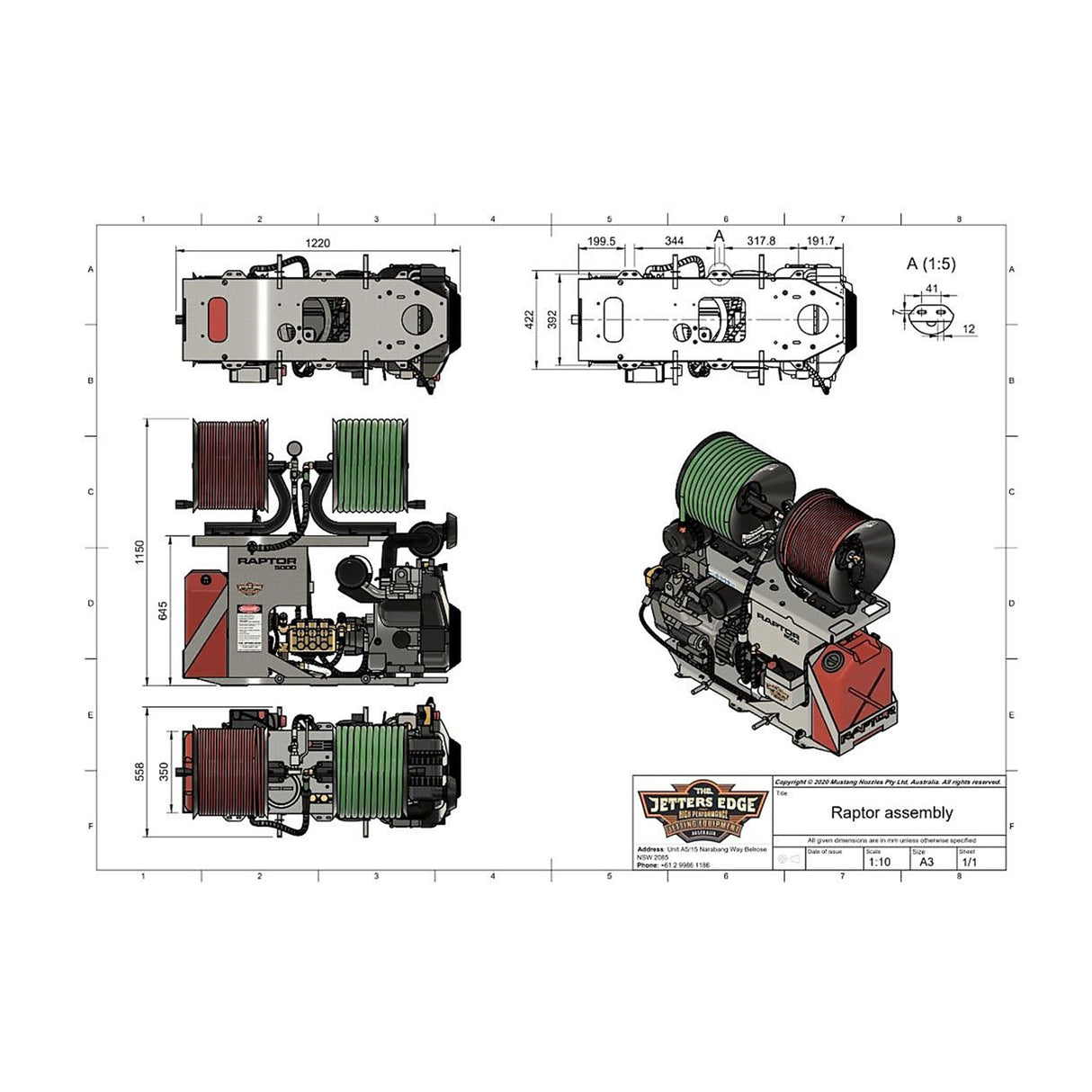

Size:
The Raptor measures W: 560mm x L: 1200mm x H: 1220mm
Without wheels, the height is 1150mm

Download PDF Drawing here without wheels

Download PDF Drawing here with wheels

Remember to allow extra room around the jetter for servicing requirements!

Please call the team at Assassin Jetters to discuss your jetter requirements. We will then tailor a quote to your specific needs and ensure you get the best possible jetting solution. Call now on (02) 9674 9088.
