Flir C5 Thermal Imaging Camera
Flir C5 Thermal Imaging Camera is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.

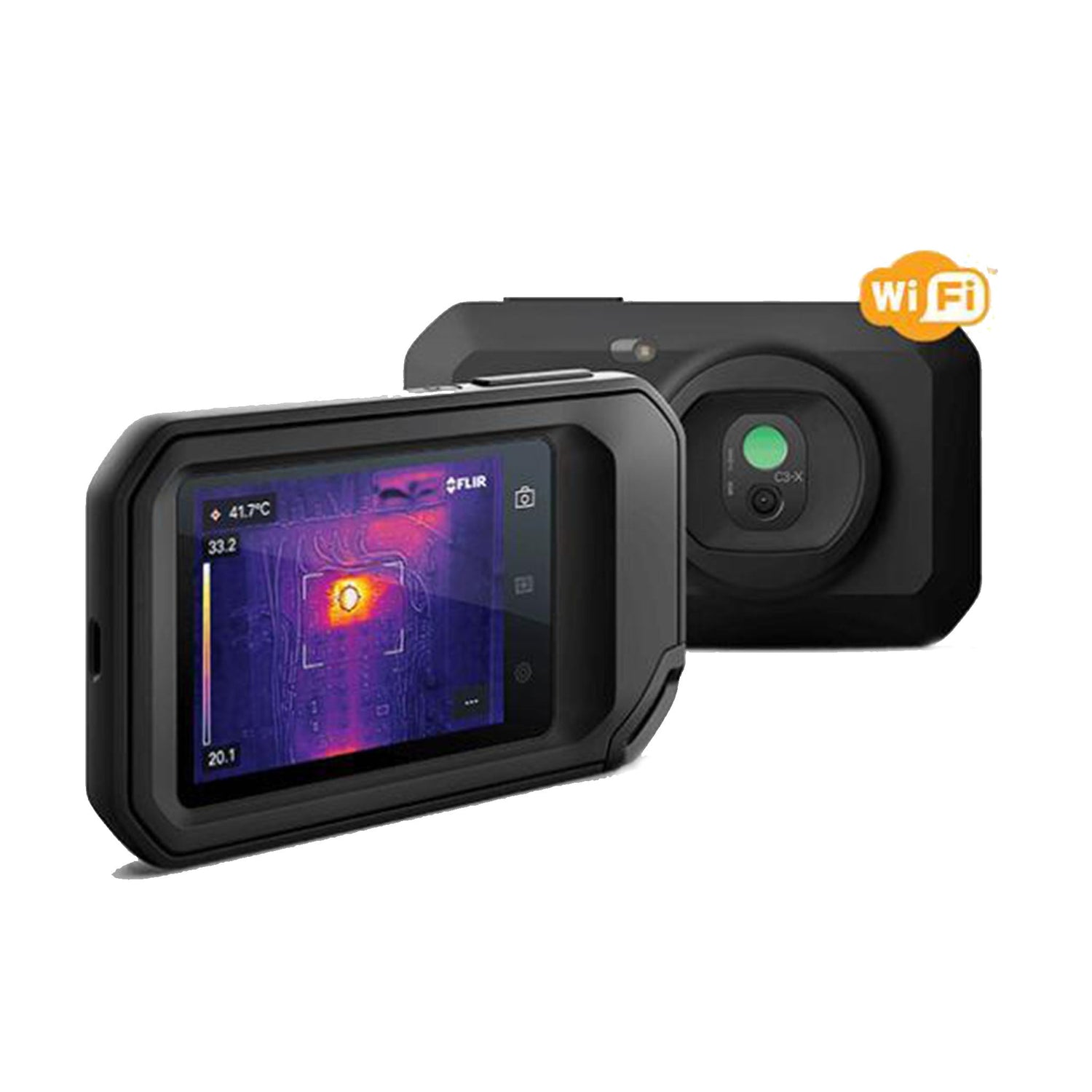

Flir C5 Thermal Imaging Camera
With the FLIR C5 in your pocket, you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more.
Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight.
The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
Camera Size: 138 x 84 x 24mm
IDENTIFY AND TROUBLESHOOT: Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span.
DOCUMENT AND SHARE: Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers.
RUGGED, RELIABLE, COMPACT: Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2m drop.
Specifications
| R Sensor | 160 x 120 |
| Thermal Sensitivity/NETD | <0.07°C |
| Field of View (FOV) | 41 x 31° |
| Minimum Focus Distance | Thermal: 0.15 m (0.49 ft) MSX®: 1 m (3.3 ft) |
| Image Frequency | 9 Hz |
| Focus | Focus Free |
| Spectral Range | 7.5 to 14.0 µm |
| Digital Camera | 19,200 pixels |
| Digital Camera Focus | Fixed Focus |
| Image Modes | Thermal, visual, MSX®, Picture-in-Picture |
| Image Gallery | Yes |
| MSX® | Adds visual details to full resolution thermal image |
| Colour Palettes | Iron, Rainbow, Rainbow HC, Gray |
| Auto Orientation | Yes |
| Touch Screen | Yes, capacitive |
| Storage Media | Internal memory, at least 500 sets of images |
| Image File Format | Standard JPEG with 14-bit measurement data included |
