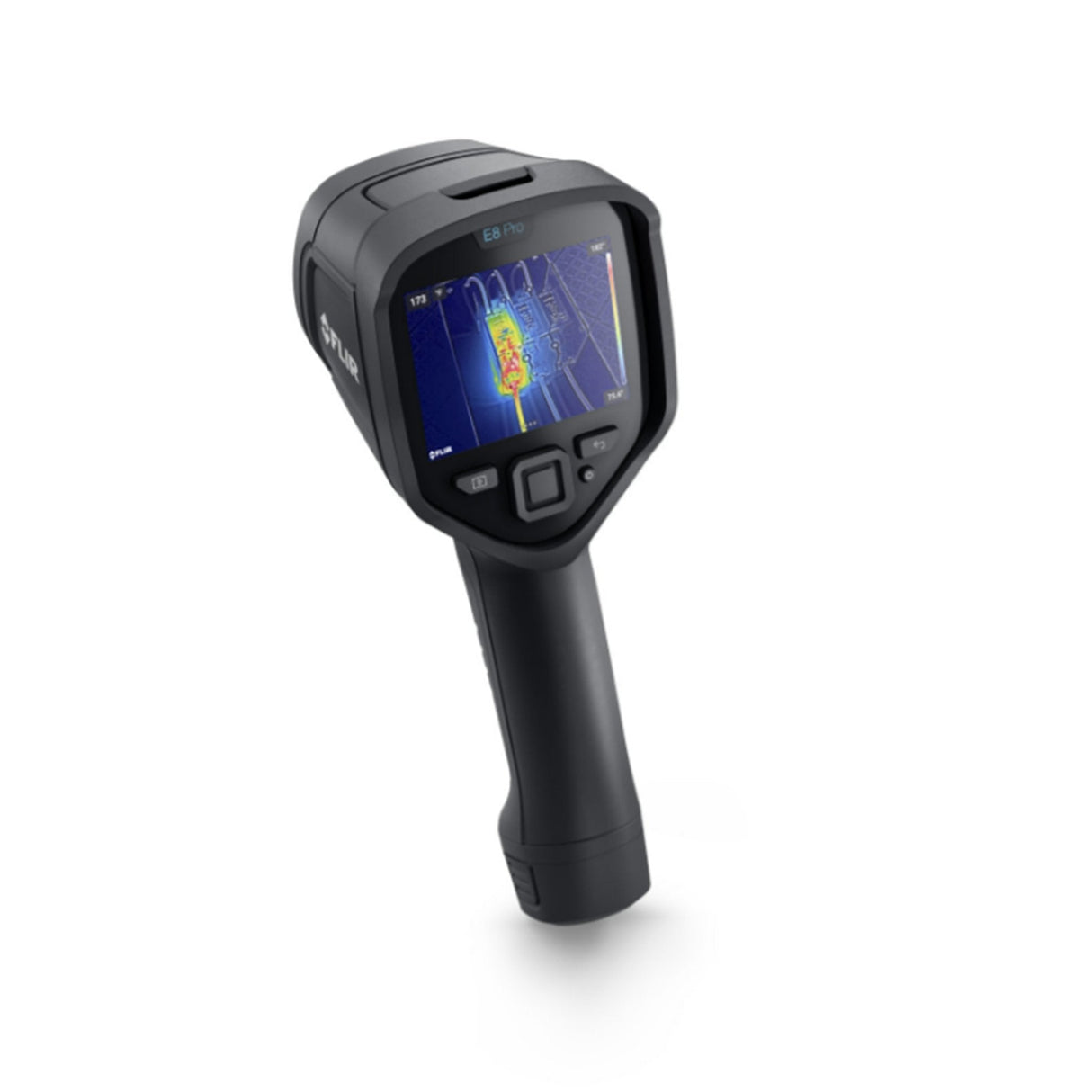

Flir E8 PRO Thermal Imaging Camera
The FLIR E8 Pro is your must-have tool for locating and diagnosing electrical, mechanical, and building problems. Quickly pinpoint hot spots and easily identify problems with vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement.
Your inspections will be more efficient because you can do all your work from the touchscreen: organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device. When you’re ready to share images and create client reports, your images and notes are already available in FLIR Ignite or FLIR Thermal Studio for the most streamlined experience.
-
QUICKLY IDENTIFY PROBLEMS
FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.
-
DO IT ALL FROM THE TOUCHSCREEN
Organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device.
-
STREAMLINE SHARING AND REPORTING
Share images easily and create advanced client reports in FLIR Ignite or FLIR Thermal Studio.
Specifications
|
Model Number |
FLIR E8 PRO |
|
Imaging and Optical Data |
|
|
IR Resolution |
320 × 240 (76,800 pixels) |
|
MSX Resolution |
320 × 240 |
|
Thermal Sensitivity |
<0.06°C |
|
Field of View |
33° |
|
Focus |
Fixed Focus |
|
Detector |
Uncooled Microbolometer |
|
Screen |
3.5", 640 × 480 colour LCD |
|
Frame Rate |
9 Hz |
|
Analysis |
|
|
Image Modes |
Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera |
|
Multi-Spectral Dynamic Imaging (MSX) |
IR image with enhanced detail presentation |
|
Picture-in-Picture |
IR area on the image |
|
Temperature Range |
-20°C to 550°C (-4°F to 1022°F) in two ranges |
|
Accuracy |
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
|
Spot Meter |
Center spot; box with min/max |
|
Alarm |
Blue below or red above set temperature |
|
Emissivity Correction |
Variable from 0.1 to 1.0 |
|
Set-Up |
|
|
Colour Palettes |
Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
|
Set-up Commands |
Local adaptation of units, language, date and time formats |
|
Image Storage |
|
|
Storage Capacity |
Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi) |
|
Storage Mode |
Simultaneous storage of images in IR, visual and MSX |
|
File Formats |
Standard JPEG, 14-bit measurement data included |
|
Other |
|
|
Battery Type / Op Time |
Rechargeable Lithium-ion battery / ~4 hours |
|
Dimensions / Weight |
385 mm × 165 mm × 315 mm (15.2 in × 6.5 in × 12.4 in) / 575 grams (1.27ibs) |
|
Drop |
2 meter / 6.6 ft |
|
Warranty |
2-Year Tool Warranty - 10-Year Sensor Warranty |
