Flir Thermal Imaging  |  SKU: FLIR E8-XT

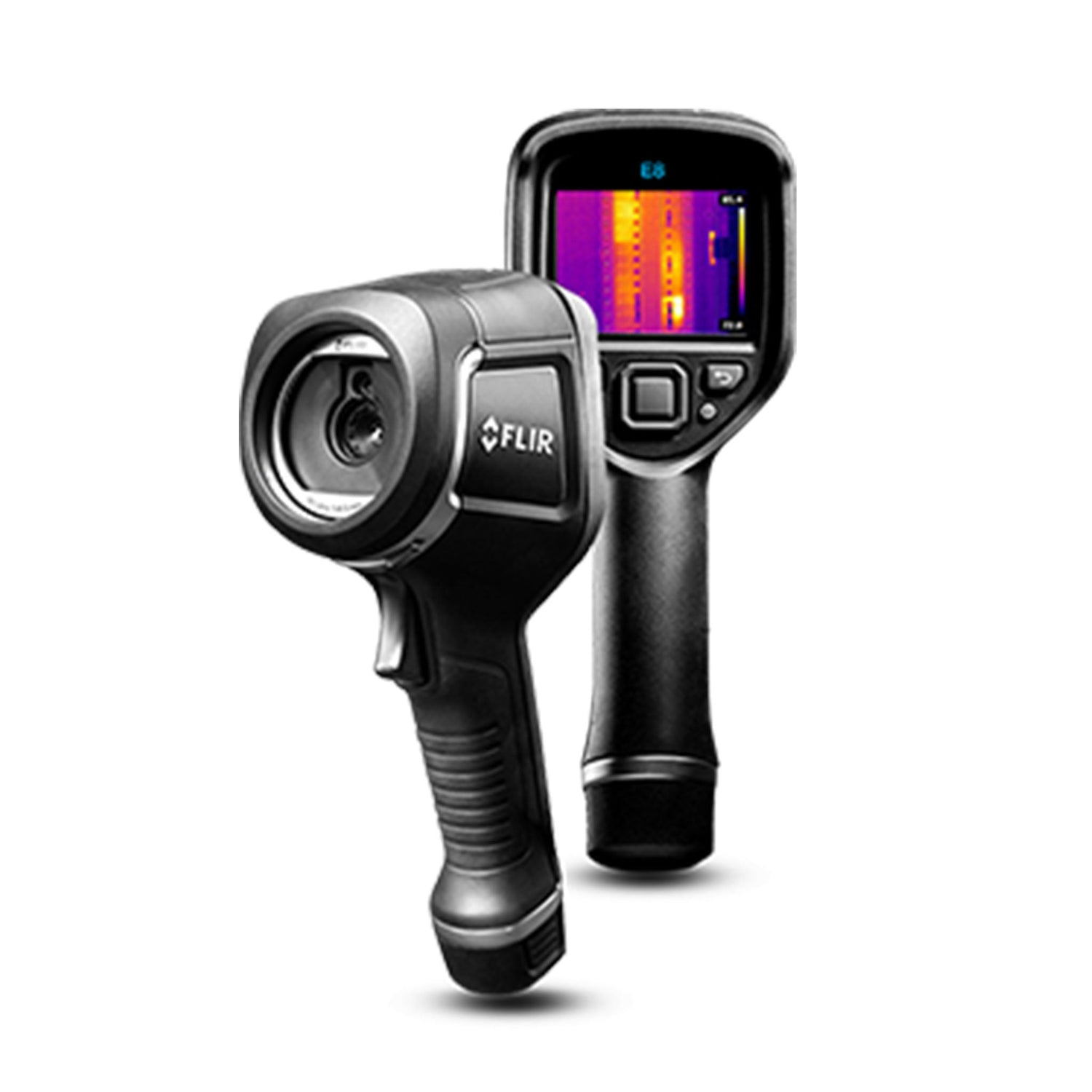

Flir E8-XT Thermal Imaging Camera

$6,044.50 AUD inc GST
Shipping calculated at checkout.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

The Flir E8 camera has high resolution and is designed for contractors who need a very high level of resolution. Now you can afford the ultimate inspection tool. Gain a competitive advantage and take care of more customers. Blow them away with dramatic MSX thermal images that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment.

A focus-free lens and simple button navigation to on-screen settings, imaging modes, measurement tools, and saved JPEGS make all four of these cameras amazingly easy to operate, even with just the press of a single gloved thumb.

From the 4800-pixel thermal image clarity of the E4 to the E8's incredible 320x240 detector with 76,800 pixels, FLIR Ex-Series cameras offer a resolution to fit the target size, working distance, and detail required for your application as well as your budget.

MSX adds key details from the onboard visible light camera to the entire infrared image in real-time. The result: an all-in-one thermal picture with numbers, labels, and other structural features intact so you'll instantly recognize where the heat issue is.

Specifications

Model Number

FLIR E8-XT

Imaging and Optical Data

IR Resolution

320 × 240

MSX Resolution

320 × 240

Thermal Sensitivity

 <0.06°C

Field of View

45° × 34°

Focus

Focus Free

Detector

Uncooled Microbolometer

Screen

3.0 in. 320 × 240 colour LCD

Frame Rate

9 Hz

Analysis

Image Modes

IR image, visual image, MSX, picture-in-picture, thumbnail gallery



Multi-Spectral Dynamic Imaging (MSX)

IR image with enhanced detail presentation

Picture-in-Picture

IR area on the image

Temperature Range

–4° F to 482°F (–20° to 250°C)

Accuracy

 ±2% or 2°C

Measurement Modes

3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below)

Alarm

Blue below or red above set temperature

Emissivity Correction

Variable from 0.1 to 1.0

Set-Up

Colour Palettes

Iron, Rainbow, and Gray

Set-up Commands

Local adaptation of units, language, date and time formats

Image Storage

Storage Capacity

Internal memory stores at least 500 sets of images

Storage Mode

Simultaneous storage of images in IR, visual and MSX

File Formats

Standard JPEG, 14-bit measurement data included

Other

Battery Type / Op Time

 ~4 hours

Dimensions / Weight

  / 1.27 lbs (0.575 kg)

Drop

 2 meter / 6.6 ft

Warranty

2 Year Tool Warranty - 10 Year Sensor Warranty
